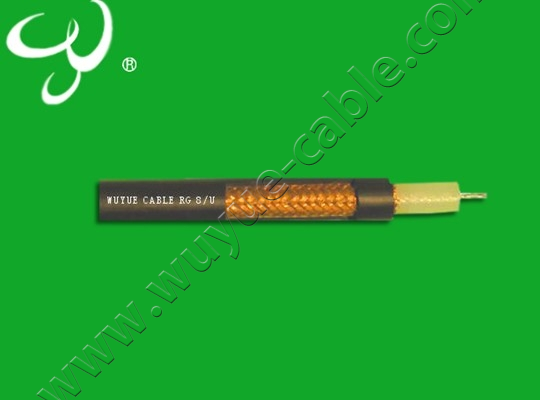

50 OHM cable RG8/U:
(1) Conductor: 2.74mm BCCA OR BC
(2)Dielectric: 7.24+/-0.05mm SolidPE
(3)Braid Shield: TC 90% Coverage
(4)Jacket: 10.20mm PE or PVC
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: unbonded AP, bonded AP, APA, Bonded APA available;
3) Braiding wire: AL, Bare Copper and Tinned Copper wire available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 80- 97% available;
7) PVC sheath: Flame retardant,UV, UL, Rohs, LSZH available.
Characteristics:
Spark test: 2000VAC
Dielectric Strength: Conductor to shield 1500 VDC
Impendance: 50+/-3 ohm
Capacitance: 28.5+/-3 pF/Ft(Nom).
Velocity of propagation: 66%
DCR: Conductor 10.55 ohms/1000ft
Shield 4.1 ohms/1000ft
SRL: 15dB(10 to 300 MHz)100% Swept tested
Packing: 100m, 200m, 305m, 500m, 750m...
Plastic spool, wooden reel...In pallet is avilable
