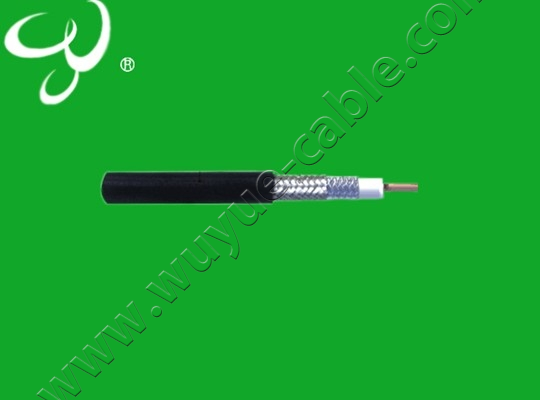

Detailed Product Description
|
Component( Nominal)
|
Standard Shield
|
Tri- Shield
|
Quad Shield
|
|
|
Inches
|
mm
|
Inches
|
mm
|
Inches
|
mm
|
|
Inner Conductor Diameter
|
0.064
|
1.63
|
0.064
|
1.63
|
0.064
|
1.63
|
|
Diameter Over Dielectric
|
0.280
|
7.11
|
0.280
|
7.11
|
0.280
|
7.11
|
|
Diameter Over 1st Shield
|
0.287
|
7.29
|
0.287
|
7.29
|
0.287
|
7.29
|
|
Diameter Over Jacket
|
0.395
|
10.03
|
0.395
|
10.03
|
0.405
|
10.29
|
|
Diameter of Steel Messenger
|
0.072
|
1.83
|
0.072
|
1.83
|
0.072
|
1.83
|
Electrical Characters
|
Nominal Impedance
|
75 ohms
|
|
Nominal Velocity of Propagation
|
85%
|
Attenuation(at 68︒ F,20︒ C)
|
Frequency (MHz)
|
Maximum (dB/100ft)
|
Maximum (dB/100m)
|
|
5
|
0.83
|
1.25
|
|
55
|
0.96
|
3.15
|
|
250
|
2.05
|
6.72
|
|
300
|
2.25
|
7.38
|
|
350
|
2.42
|
7.94
|
|
400
|
2.6
|
8.53
|
|
450
|
2.75
|
9.02
|
|
500
|
2.9
|
9.51
|
|
550
|
3.04
|
9.97
|
|
600
|
3.18
|
10.43
|
|
750
|
3.65
|
11.97
|
|
865
|
3.98
|
13.05
|
|
1000
|
4.35
|
14.27
|
|
1450
|
5.56
|
15.52
|
|
1750
|
6.98
|
17.53
|
|
2050
|
8.41
|
20.94
|
|
2500
|
9.72
|
23.6
|
|
3000
|
10.65
|
26.65
|
